1w 3w 1000nm 1050nm led

FOB Reference Price:Get Latest Price
US $0.2-0.7 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
High Power LED, 1w high power led
Model Number:
1w high power led
Chip Material:
Gap AGas
Emitting Color:
White Blue, Green Red Yellow Amber Orange UV IR Pink
Luminous Intensity:
Luminous Flux(lm):
Optical Attenuation(%):
Power Dissipation:
Viewing Angle(°):
Color Rendering Index(Ra):
Color Temperature:
Operating Temperature(℃):
-25 - 65
Storage Temperature(℃):
-25 - 65
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
350mA 700mA
45*45mil Bridgelux chips & Epistar chips
White,Blue,Green,Yellow,Amber,Red,Pink, IR,UV
3 years
From 365nm up to 1050nm
PC lens, Reflow lens
Raw materials:
Copper bracket 99.999% golden wire
Packaging & Delivery
Packaging Details
ESD bag
Lead Time :
Leadtime:3- 5days
1w 3w 1000nm 1050nm led
Product Description
1w high power led
White color
Part No. Intensity (lm) Current (mA) Voltage (v) Emitting angle
FD-1W120-Y 120-130lm 350mA 3.0-3.6V 60deg 90deg

120deg 140deg
FD-1W130-Y 130-140lm 350mA 3.0-3.6V
Blue color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1B-Y 460-470nm 350mA 3.0-3.6V 60deg 90deg

120deg 140deg
FD-12B-Y 440-450nm 350mA 3.0-3.6V
FD-13B-Y 450-455nm 350mA 3.0-3.6V
Green color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1G-Y 520-525nm 350mA 3.0-3.6V 60deg 90deg

120deg 140deg
FD-12G-Y 500-505nm 350mA 3.0-3.6V
FD-13G-Y 490-495nm 350mA 3.0-3.6V
FD-14G-Y 495-500nm 350mA 3.0-3.6V
FD-15G-Y 515-520nm 350mA 3.0-3.6V
Yellow color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1Y-Y 588-595nm 350mA 1.9-2.3V 60deg 90deg 120deg 140deg
Amber color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1A-Y 600-610nm 350mA 1.9-2.3V 60deg 90deg 120deg 140deg
Red color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1R-Y 620-630nm 350mA 1.9-2.3V 60deg 90deg

120deg 140deg

FD-12R-Y 640-650nm 350mA 1.9-2.3V
FD-13R-Y 660nm 350mA 1.9-2.3V
FD-132R-Y 660-670nm 350mA 1.9-2.3V
FD-142R-Y 670-680nm 350mA 1.9-2.3V
FD-14R-Y 680-690nm 350mA 1.9-2.3V
FD-15R-Y 700nm 350mA 1.9-2.3V
FD-16R-Y 730nm 350mA 1.9-2.3V
FD-17R-Y 760-770nm 350mA 1.9-2.3V
FD-18R-Y 720-725nm 350mA 1.9-2.3V
FD-19R-Y 730-740nm 350mA 1.9-2.3V
FD-111R-Y 740-750nm 350mA 1.9-2.3V
UV color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1UV-Y 400-410nm 350mA 3.0-3.6V 60deg 90deg

120deg 140deg

FD-12UV-Y 390-400nm 350mA 3.0-3.6V
FD-13UV-Y 410-420nm 350mA 3.0-3.6V
FD-14UV-Y 430-440nm 350mA 3.0-3.6V
FD-15UV-Y 365nm 350mA 3.0-3.6V
FD-16IV-Y 380-385nm 350mA 3.0-3.6V
FD-17UV-Y 370-375nm 350mA 3.0-3.6V
FD-18UV-Y 375-380nm 350mA 3.0-3.6V
Infrared ( IR ) color
Part No. Wavelength ( nm) Current (mA) Voltage (v) Emitting angle
FD-1IR-Y 940nm 350mA 1.6-1.9V 60deg 90deg

120deg 140deg
FD-12IR-Y 850nm 350mA 1.6-1.9V
FD-13IR-Y 880nm 350mA 1.6-1.9V
FD-14R-Y 770-780nm 350mA 1.5-2.0V
FD-15IR-Y 800-810nm 350mA 1.3-1.7V
FD-16IR-Y 810-820nm 350mA 1.3-1.7V
FD-17R-Y 870nm 350mA 1.3-1.7V
FD-18IR-Y 890nm 350mA 1.3-1.7V
FD-19IR-Y 900-910nm 350mA 1.3-1.7V
FD-1I0R-Y 970-980nm 350mA 1.6-1.9V
FD-111IR-Y 980-990nm 350mA 1.1-1.3V
FD-112IR-Y 1000-1050nm 350mA 1.0-1.2V
  • Warranty: 3 years
  • Lifespan:>80,000 hours
  • Super low decay version
  • Anti-static built-in
  • Anti-high temperature
  • Lens available:
    • PC lens
    • Resin Lens for SMT soldering
  • Packing:
    • ESD box
    • Tube packing
    • Reel packing
  • Emitting angle available:
    • 60 degrees
    • 90 degrees
    • 20-140 degree
  • Choose LED experts, choose fedy

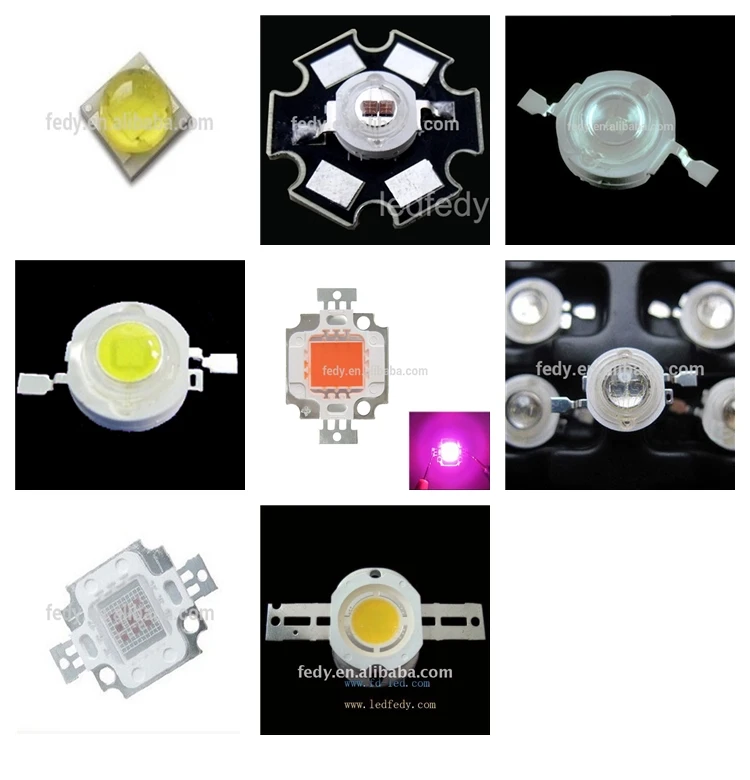

Product Pictures

Company Information

1. FEDY is a professional manufacturer of high quality led diode since 2000

2. Class A quality with 3 years warrany for all items.

3. Orignal Epistar/Bridgelux chips with 100% Class A grade.

4. All leds 100% QA passed before shipped.

5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .


1) How can I place order?
A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.

3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.


All the raw materials we used are CE ROHS Applied .

Factory Show

Contact Us

Contact us freely !

Packing & Shipment

Packing details :

SMD LED : Reels

DIP LED : ESD bag , Taping . Tubes

High power led : ESD box . Taping , Tubes

Shipping :
